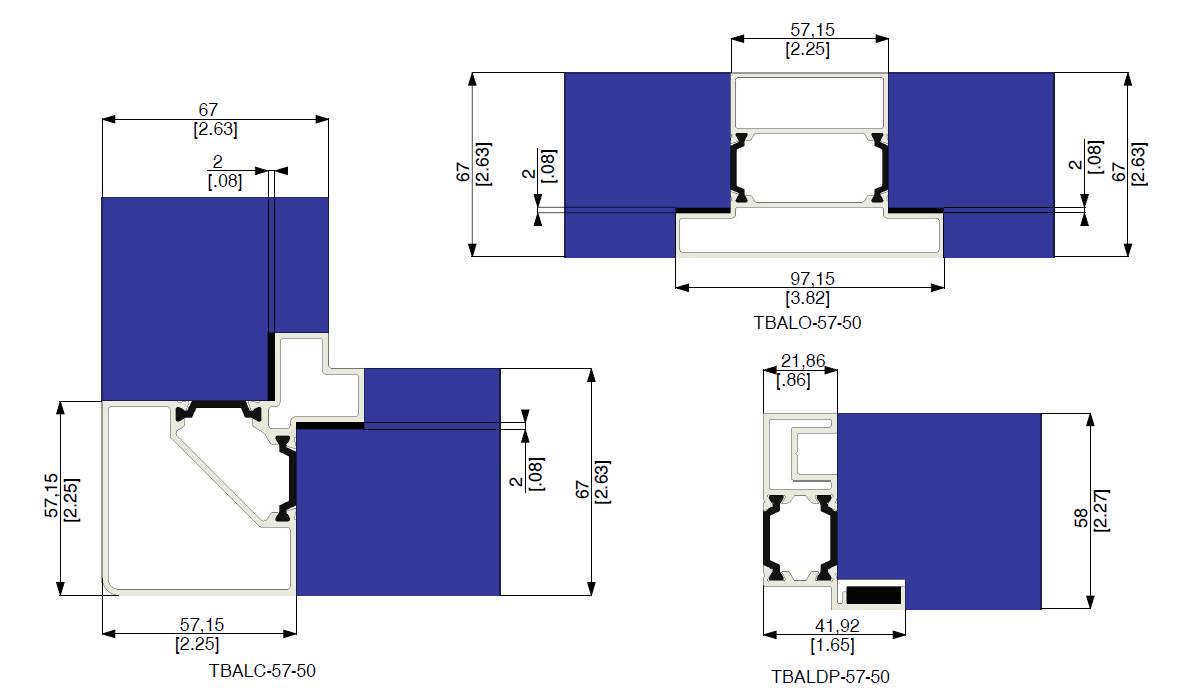

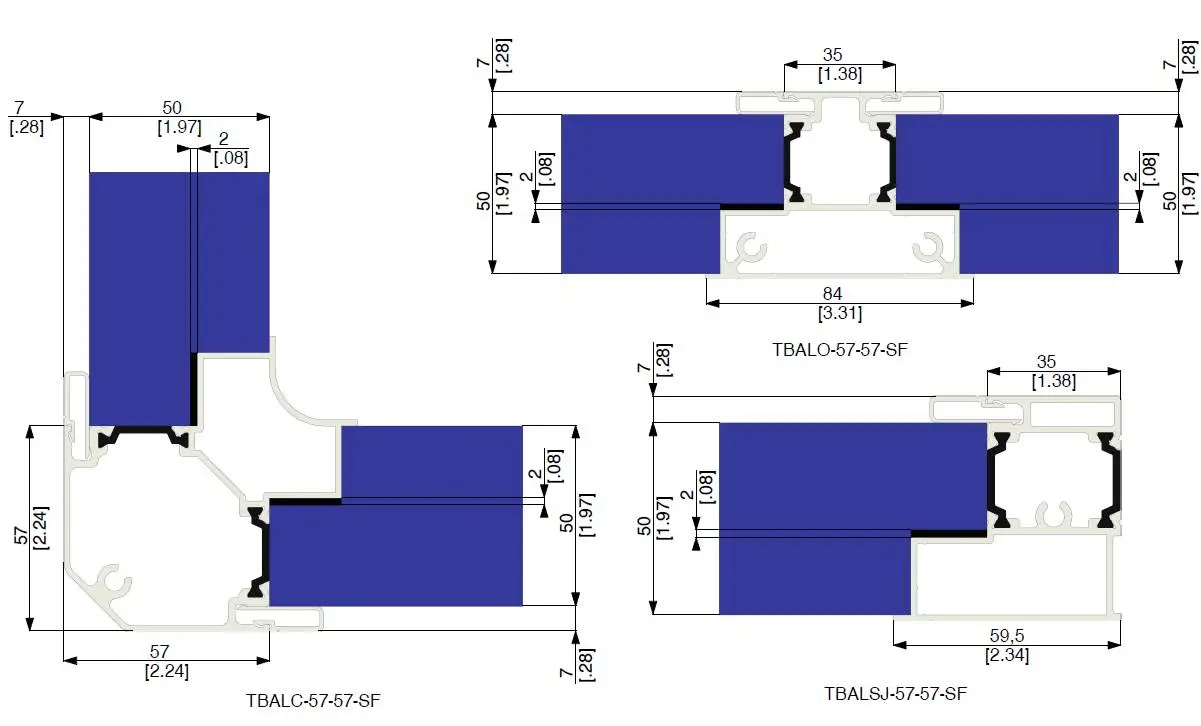

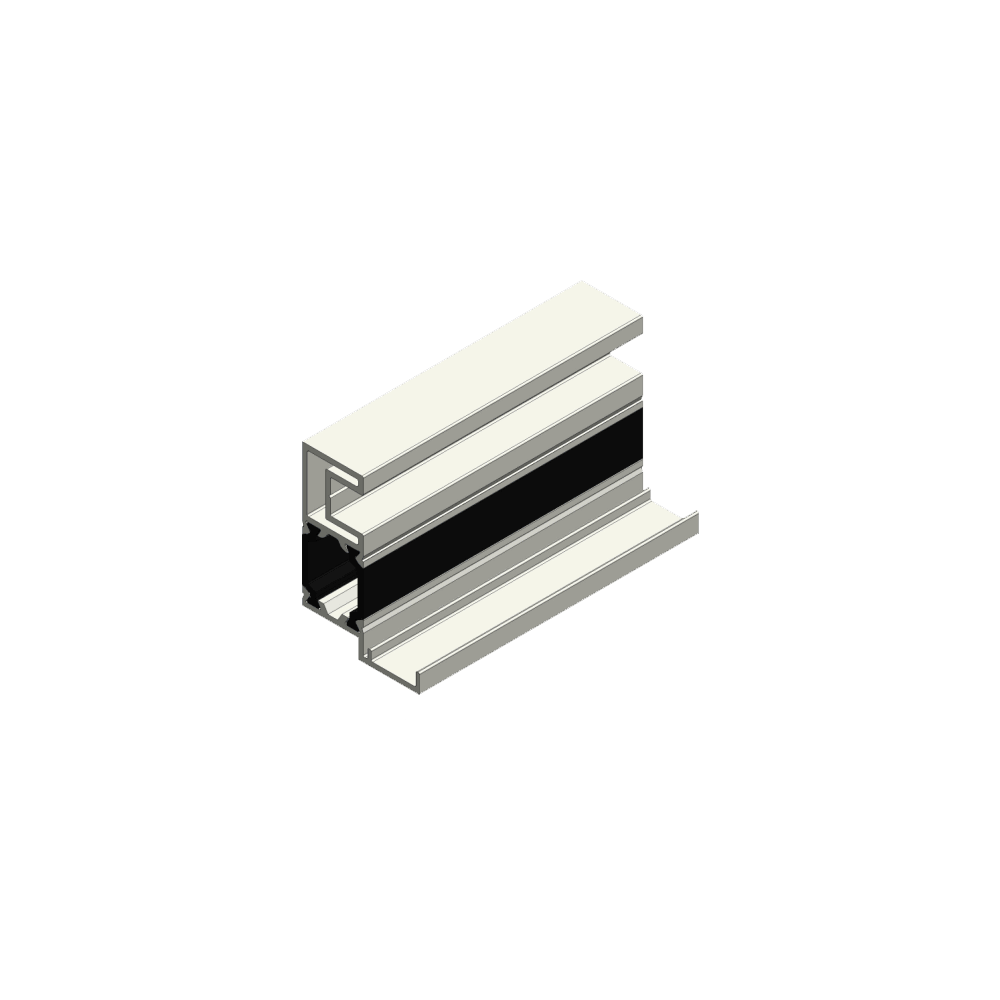

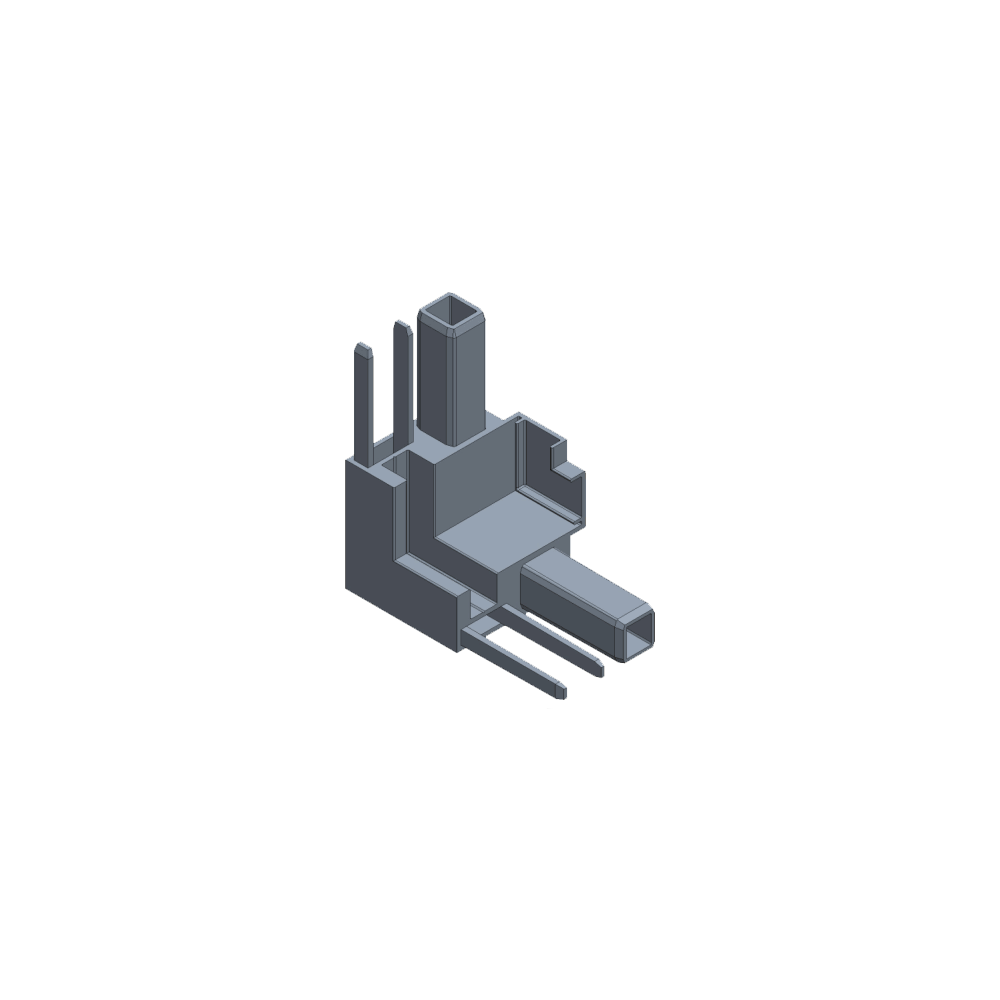

Products/Profiles & Joiners/57-50 Series – Thermal Break 57-50 Series Thermal Break A thermal break profile system with door panel configuration for AHU frames with 50 mm panel thickness. Get a Quote Download DataSheet Thermal Break VDI 6022 Certified System Specs Panel Thickness 50 mm Frame Architecture Thermal Break Nylon Certification VDI 6022 Standard Components Table Component Part Code Material Corner Profile TB ALC 5750 Aluminium EN AW6063 Corner Joiner TB NYC 5750 Nylon VDI 6022 Omega Profile TB ALO 5750 Aluminium EN AW6063 Omega Joiner TB NYO 5750 Nylon VDI 6022 Product Components Corner Profile Part Code TB ALC 5750 Material Aluminium EN AW6063 Corner Joiner Part Code TB NYC 5750 Material Nylon VDI 6022 Omega Profile Part Code TB ALO 5750 Material Aluminium EN AW6063 Omega Joiner Part Code TB NYO 5750 Material Nylon VDI 6022 Door Panel Table Component Part Code Material Corner Profile TB ALDP 5750 Aluminium EN AW6063 Corner Joiner TB NYDP 5750 Nylon VDI 6022 Door Panel Components Door Panel Profile Part Code TB ALDP 5750 Material Aluminium EN AW6063 Door Panel Joiner Part Code TB NYDP 5750 Material Nylon VDI 6022 Related Series 57-57-SF Series A snap-fix thermal break system that eliminates exposed fasteners - for hygienic and cleanroom AHU construction where smooth internal surfaces are required. 70-50 Series A heavy-duty thermal break profile system for large-format AHU construction - 50 mm panel thickness, 70 mm nominal dimension. 55-54-M2 Series A thermal break profile system for AHU panel frames with 54 mm panel thickness, M2 variant.
